PlateProX HD

Koike Aronson Inc./Ransome has designed the PlateProX HD – to provide excellent thermal cutting machine at an affordable price. This automated dual side drive, plasma/oxy-fuel cutting machine is cost efficient and is manufactured in the U.S.A. There is also a two-year warranty.

The PlateProX HD utilizes the latest technologies to provide unmatched speed, accuracy, versatility and durability in a CNC cutting system. Designed to satisfy the world’s most demanding customer requirements, the PlateProX HD has been engineered to maximize its’ performance while costing so little. Steel Service Centers, Heavy Fabricators, Tank Manufacturers, Shipbuilders and General Fabricators are just a few of the PlateProX HD target customers.

Plasma & Oxy-fuel cutting process capabilities

Features | Standard Equipment

• Operator Console: Hard-wired switches for powering machine, selecting oxy-fuel station, operation and E-stop button. Swivels to the left or right for better ergonomic machine operation.
• Operator Station: with handles, for ease and comfort.
• Emergency Stop Button: E-Stop button quickly and safely shuts off machine motion and cutting process, including oxy-fuel gases to the torches.
• Limit Switches:Used for over-travel as well as homing of the machine.
• Linear Way and Helical Rack:25mm linear rails and AGMA 12 helical rack and pinion provides smooth and accurate motion.
• Floor Mounted Rails Mounted on a fixed base plate: Provides highly accurate symmetry for the basis of precision cutting and smooth motion. Allows expansion of rail length and use on a common rail for two or more machines.
• Koike Engineered Main Electrical Enclosure: Offers “off-the-shelf” components including Yaskawa drives and motors.
• Large Diameter Drive Pinions:Large diameter pinions offer accurate and smooth machine motion.
• Main Beam Construction: Solid steel fabricated construction. Includes precision machining for linear bearings and rack.
• Rail Axis Cable Carrier: Can be mounted on the floor or overhead.

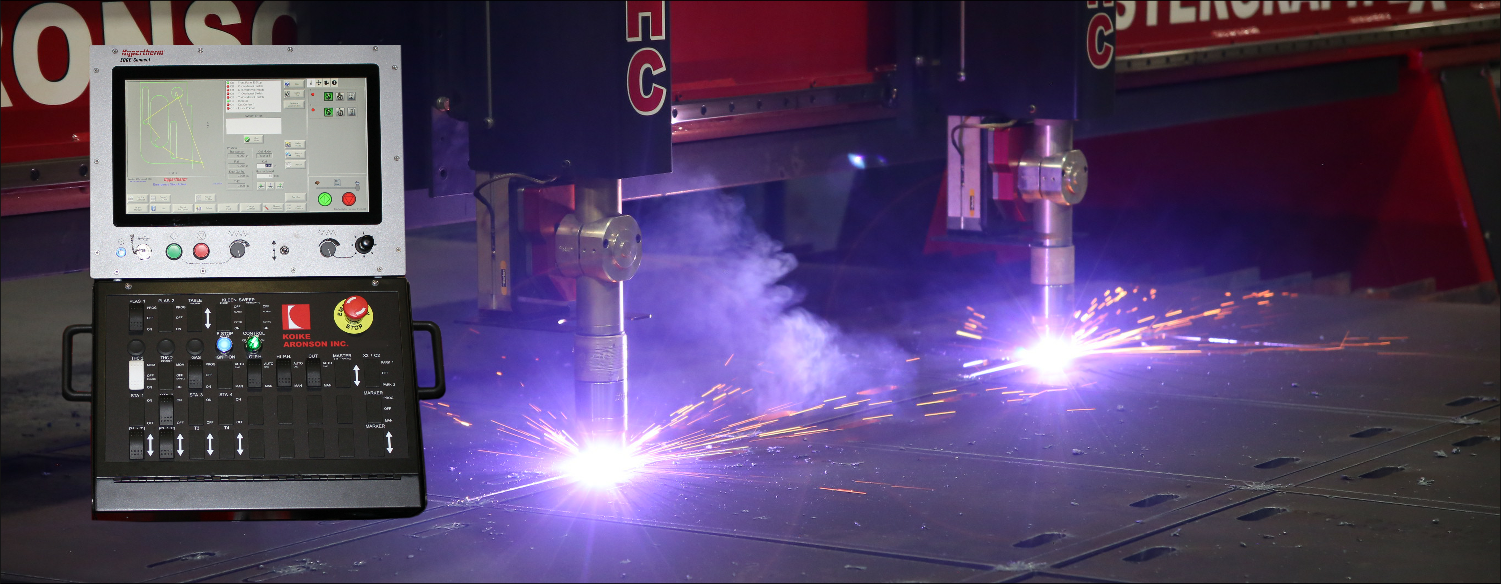

• Edge Connect TC – CNC Controller▪Windows®10 Embedded
  ▪Intel J1900 Quad -core MCU or equivalent
  ▪120GB SSD Hard Drive or better.
  ▪4GB DDR3 or better
  ▪19 inch Glass Touchscreen with 1366×768 Native resolution
  ▪IntelliTouch Pro PCAP (Projected Capacitive touch technology)
  ▪2 USB 2.0 Ports
  ▪Built in Wireless Communication
  ▪Two Plasma Station Operator Console
  ▪Forward and backup on path function
  ▪Skip to pierce or Skip part function
  ▪Part Program Support
  ▪Remote Help
  ▪DXF/DWG import/Silhouette import
  ▪Standard Grid Nesting
  ▪On-board automatic trueshape nesting software

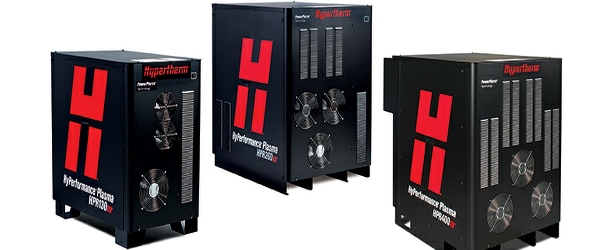

• Plasma Systems & OptionsHigh Definition and Conventional Plasma Systems Automatic or Manual gas setting. Koike Aronson offers high quality plasma cutting systems by Hypertherm®. Each of these systems offer a wide variety of features and benefits. From the most basic systems to the most advanced in the market, KOIKE offers a plasma that is sure to meet your needs. Choosing the right options for your application is not easy. Many options exist for the PlateProX HD. When you decide to buy a cutting machine from KOIKE, not only are you getting a high quality machine designed to perform and last, but most importantly, you are getting the know-how that comes with almost a century worth of experience. Your application, your job and your factory come first. You’ll find that working with our Cutting Machine Business Unit means attention to detail and finding the right machine that fits your application(s) and your budget too.

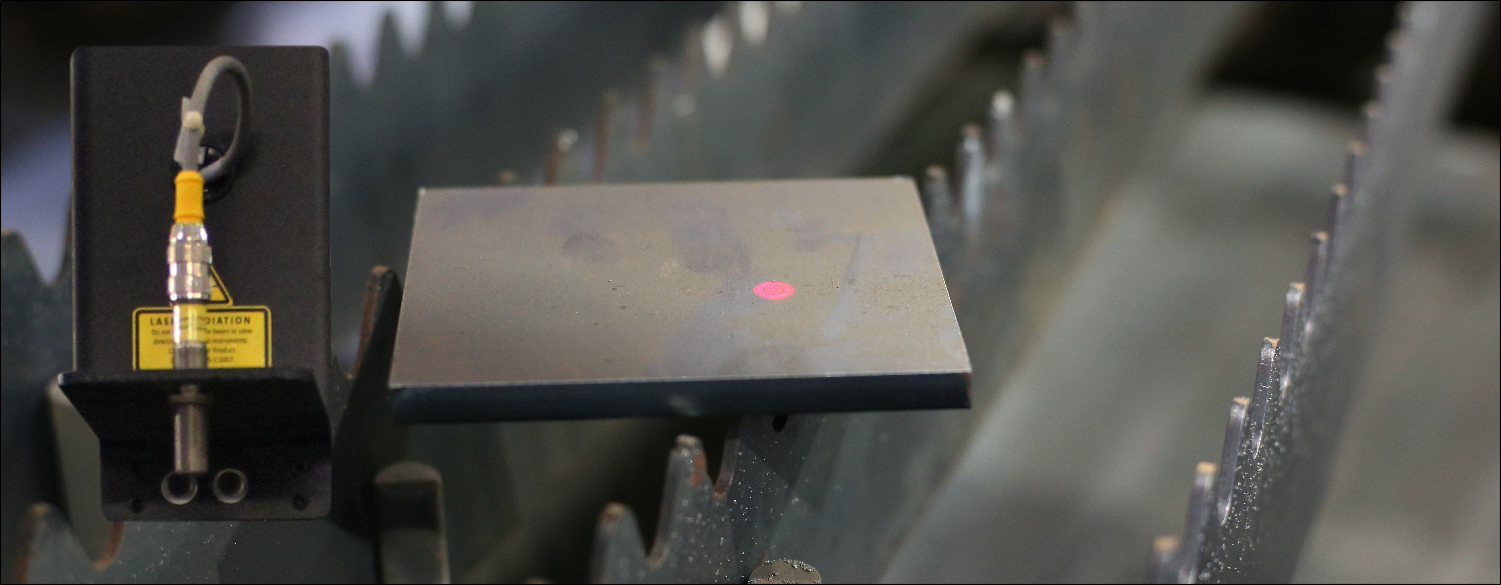

• Optional Laser Pointer: Allows operator a visual indicator for plate alignment and torch positioning.

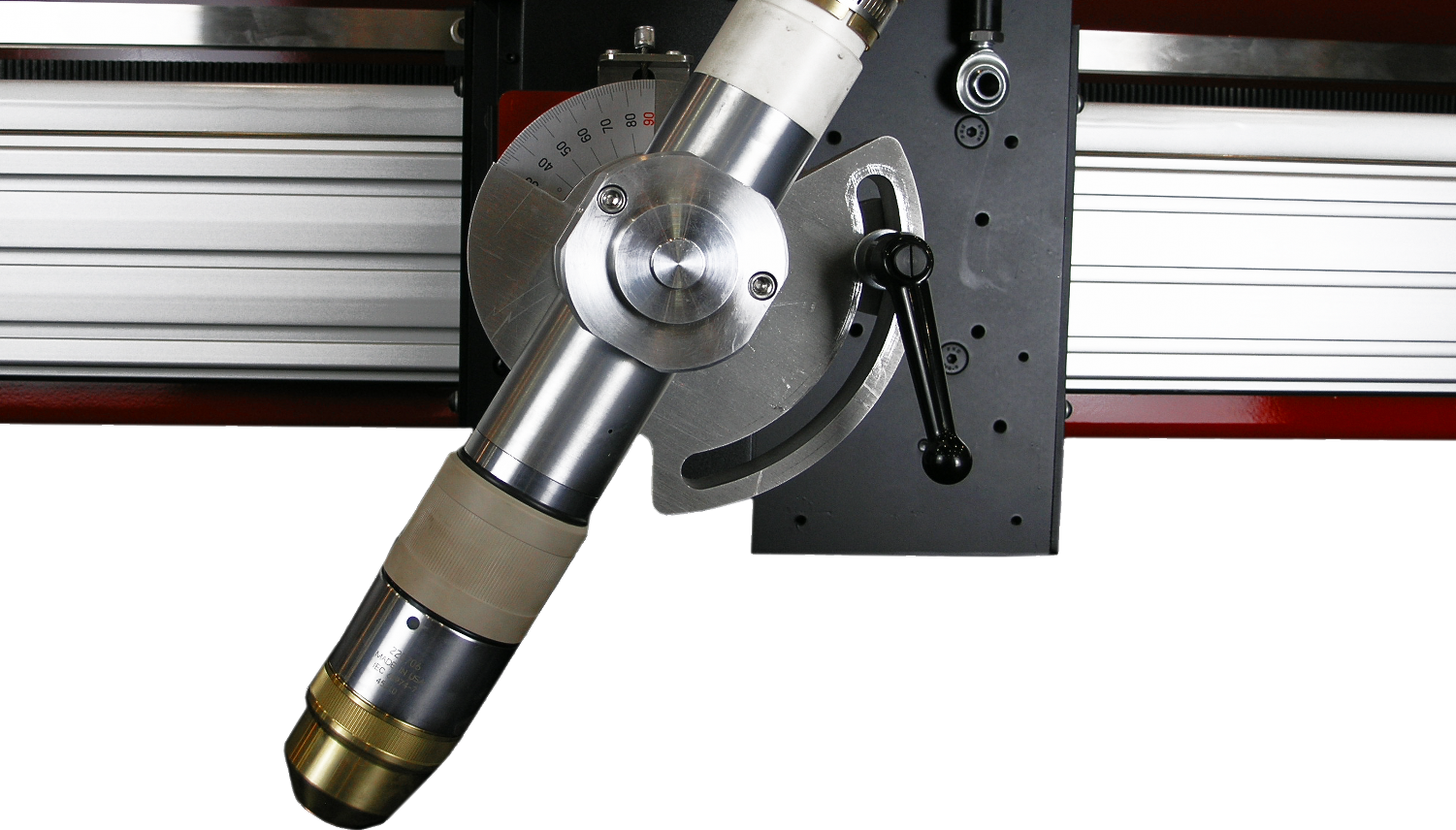

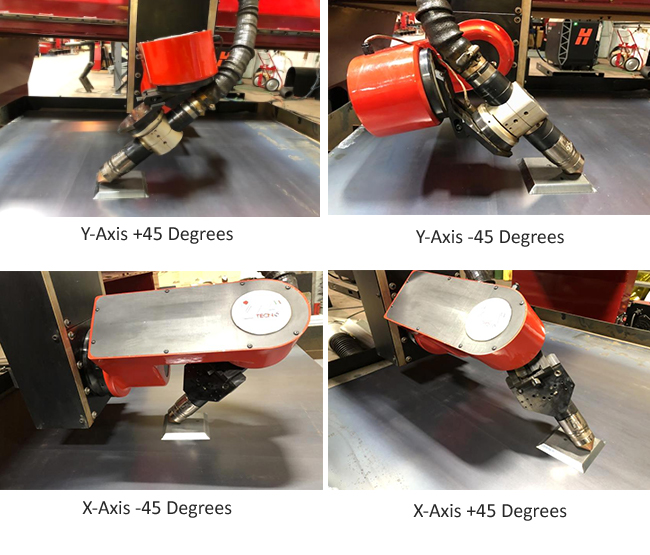

• Manual Plasma Bevel Station: Bevel in the rail axis only. Non-contour mechanical adjustment from +/- 0 to 45°.
• Koike Integrated Sensor THC Torch Height Control :
  ▪ 12″ (340.8 mm) Lifter Travel
  ▪1,000 IPM Programmable Lifter Speed
  ▪Standard Grid Nesting
  ▪Adjustable stroke retract between cuts
  ▪Dynamic positioning.
• Collision Detection Mount:
• ▪Magnetic integral breakaway for collision detection and system shutdown
  ▪Primary Ohmic contact plate sensing for clean plate
  ▪Secondary plate sensing means for scaled/rusty plate
  ▪Primary and secondary means for lifter homing
• Pneumatic Dot-Peen Pin Stamp Marker Station: Carbide tipped variable speed punch for marking bend lines, layout lines, drill locations and lettering/numbering as small as 1/4″ high.

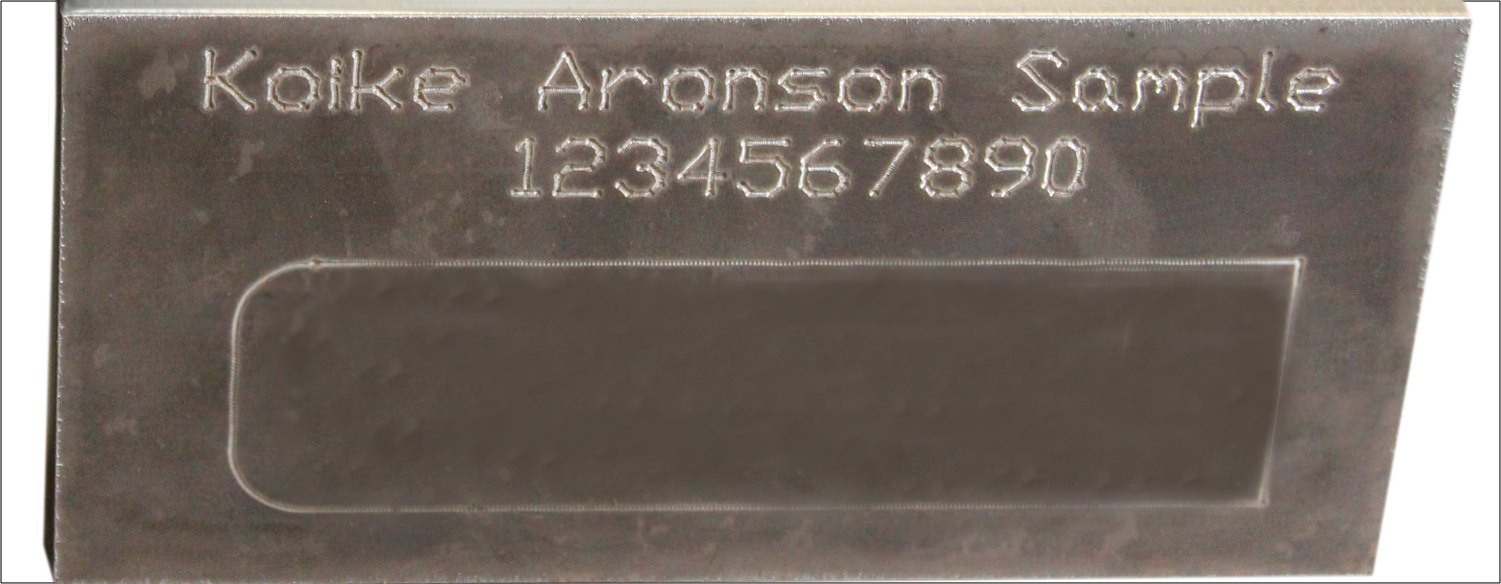

• Plasma Plate Marking: Low amperage plasma marking with the ability to adjust marking depth through the CNC parameters.

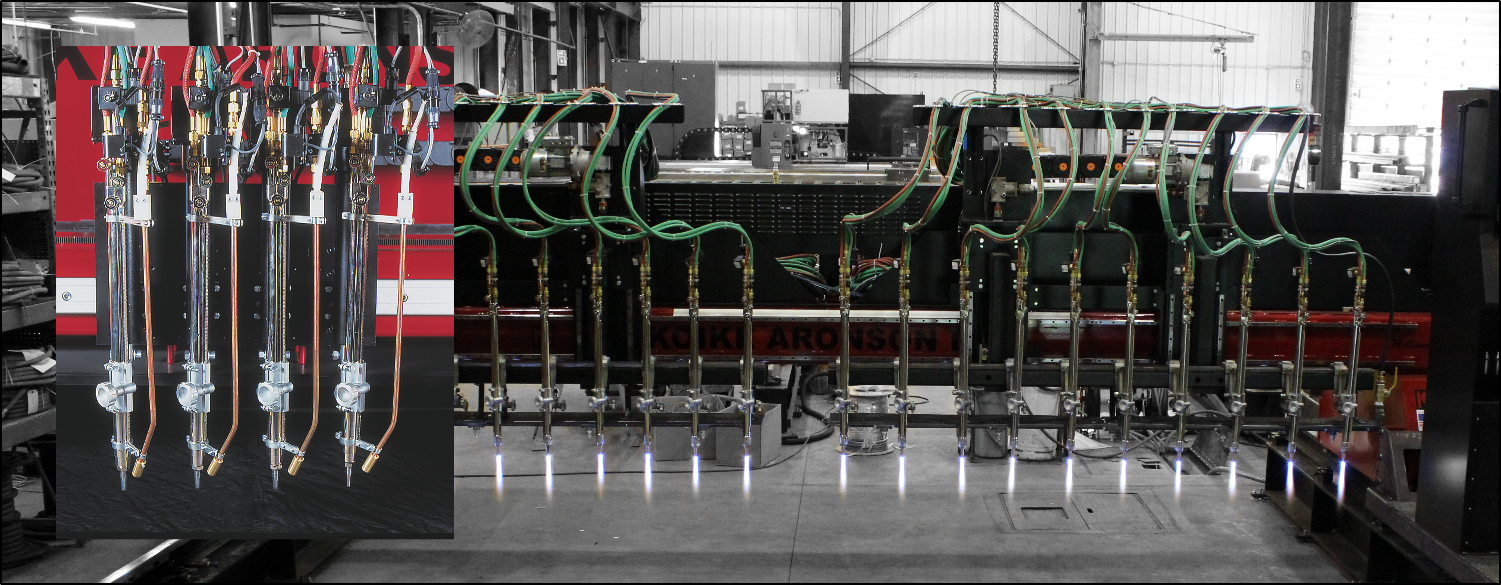

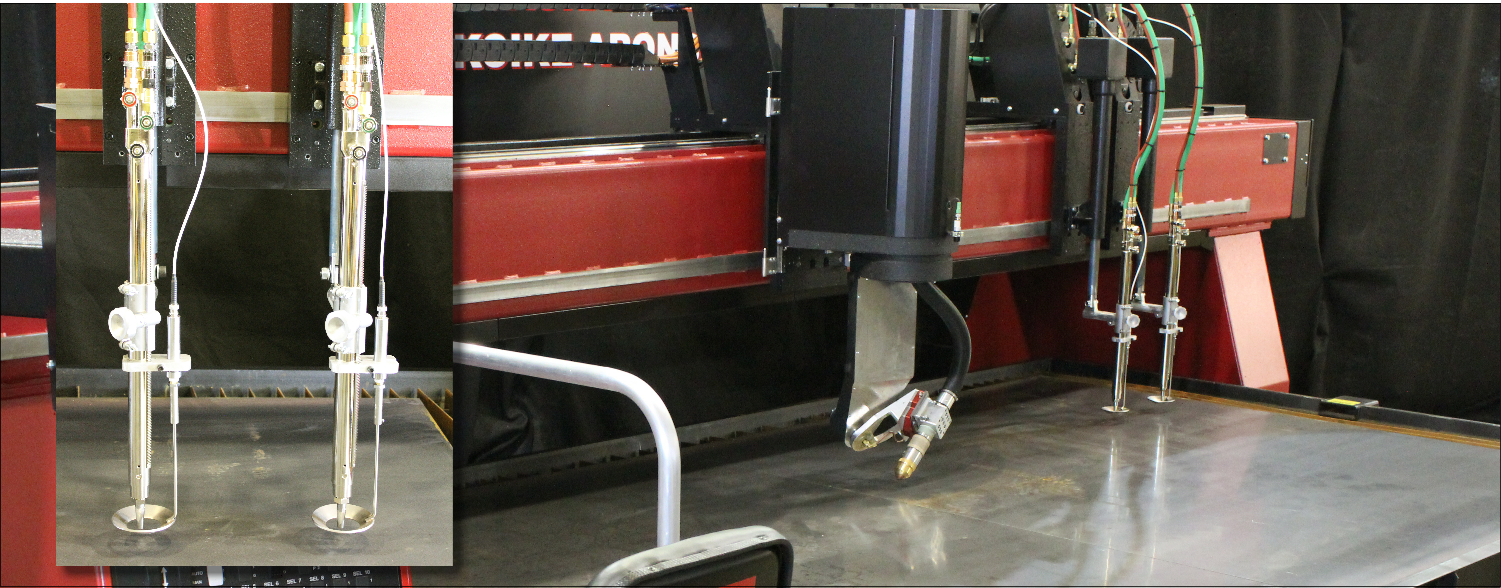

• Oxy-Fuel Torch Stations (Up to four stations available): Model “G” motorized lifter, 6-inch (150 mm) stroke at 40 IPM. All stations are controlled from Operator console. 500L Koike torch offers 1/8″ to 12″ (3 mm to 300 mm) thick plate cutting available. Capacitive height control (not shown) and automatic ignition available (optional).
• Auto-Gas Oxy-Fuel Gas System: Precise control of gas manifold pressure. CNC controlled oxy-fuel processes.
• Hi-Lo Oxy-Fuel Gas System with Auto Ease-On: Allows hi-lo preheat for fast preheating of plate and superior cutting quality. Features auto ease-on pierce control for cut oxygen. Allows for precise piercing on thicker plate. Maximum 4 in (100 mm) thick material with 4 torches.

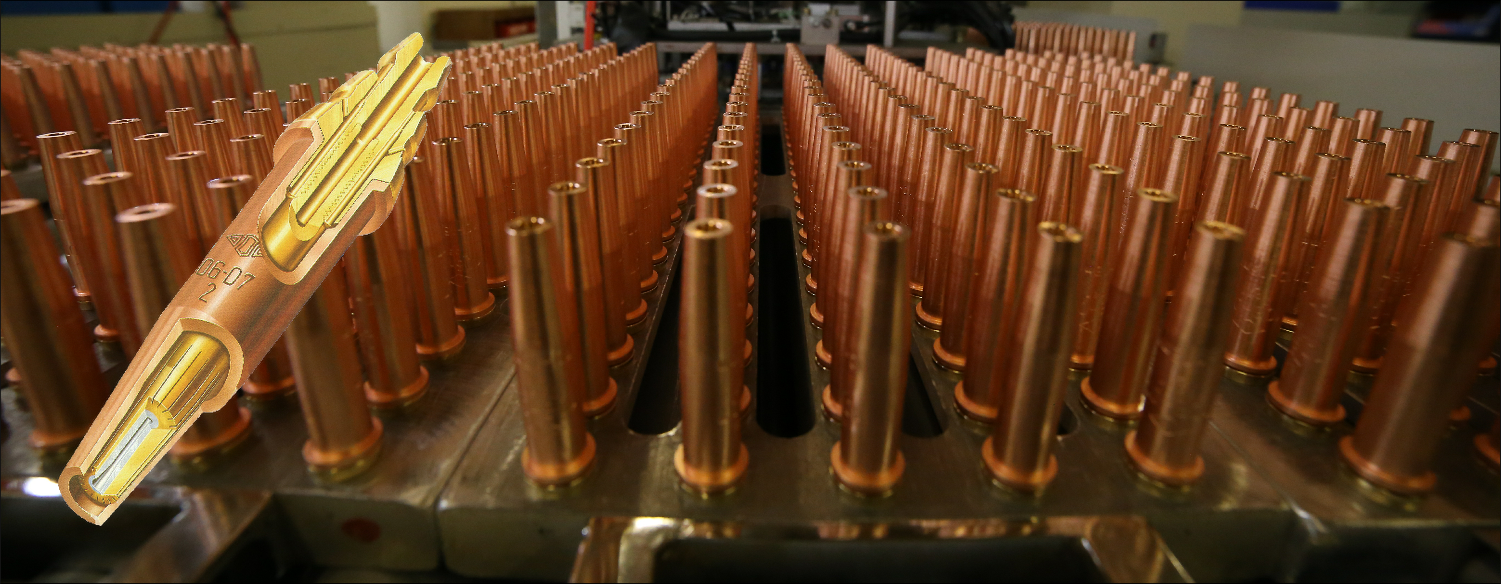

• Koike D7 Cutting Tips:
• ▪Marker and Plasma Marking▪Safer Option: Koike’s 100 Series tips are designed to reduce backfires to keep the operator and torch safe▪High Quality: Each tip is thoroughly tested to ensure consistent high-quality cutting in every tip▪Faster Cutting: Our high-speed divergent tip increases cutting speed by 20-28% over standard tips

  ▪Gas Savings: Gas consumption is reduced up to 26%

  ▪Durable: A stainless steel cutting oxygen liner results in the tip lasting up to five times longer over standard tips

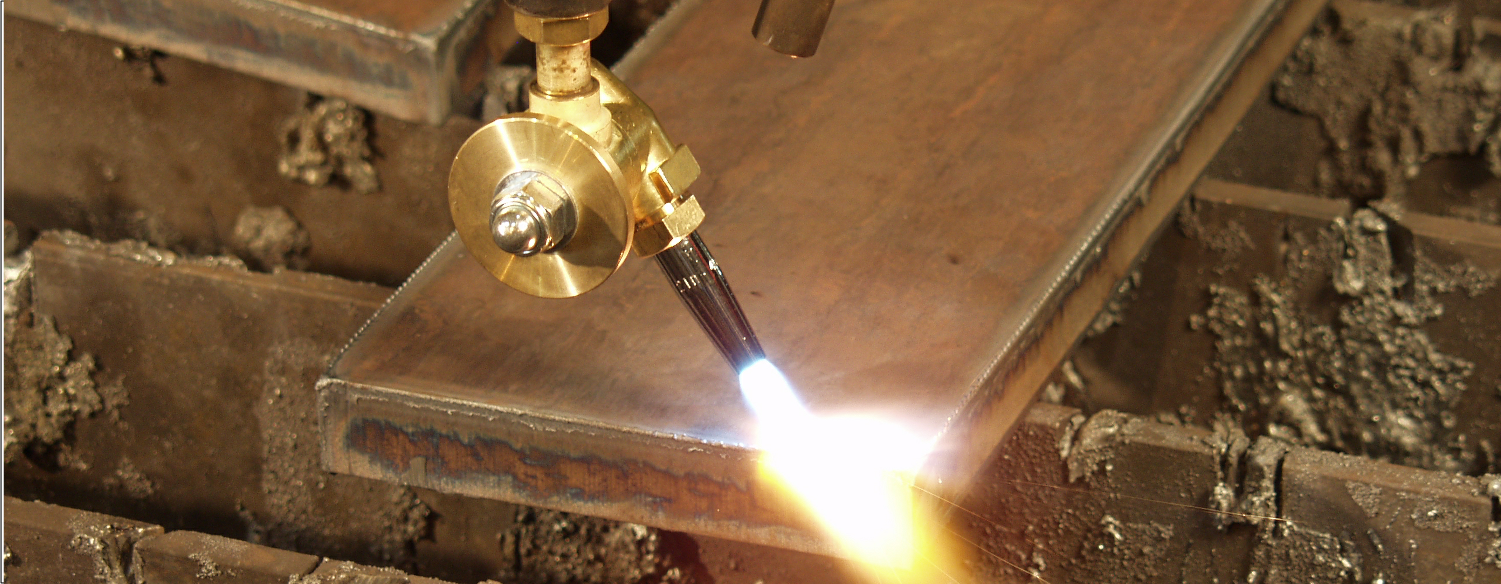

• Koike Torch Bevel Head Attachment: The bevel head attachment is used in place of a Koike cutting tip. It is used for bevel cutting operations, including top and bottom bevel cuts.

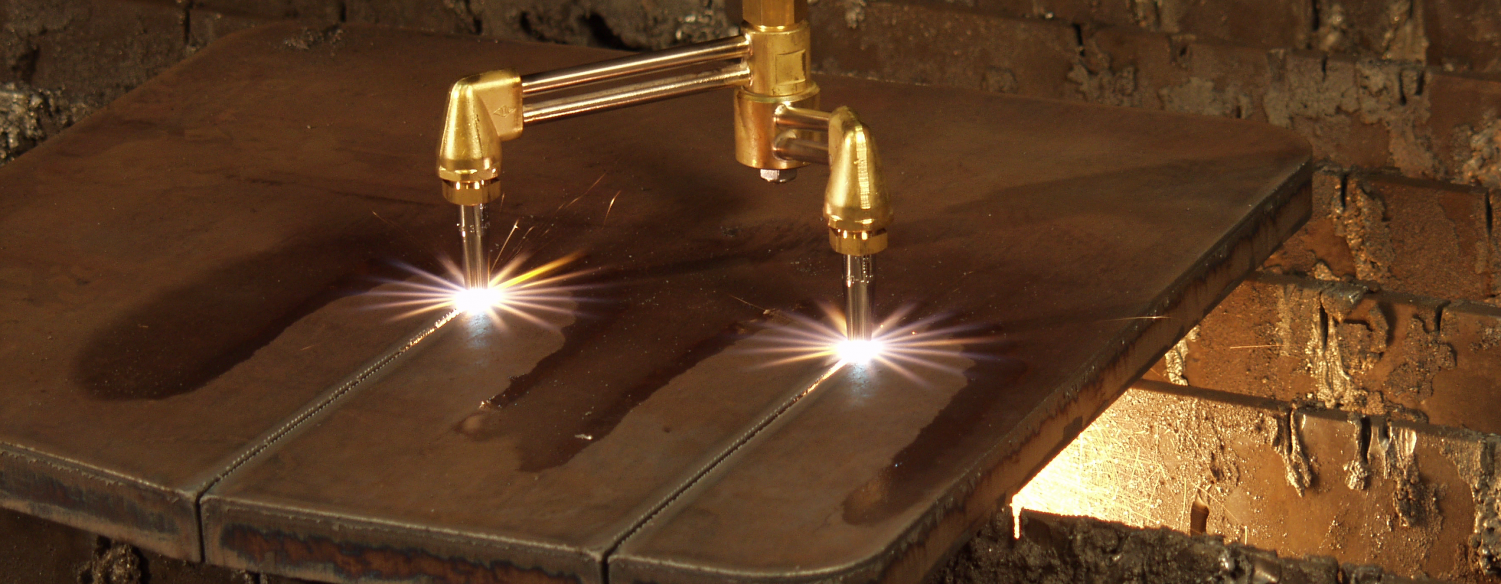

• Koike Twin Tip Holder: Coverts a single oxy-fuel cutting torch into dual cutting torches. Allows strip cutting and a closer distance between small parts.

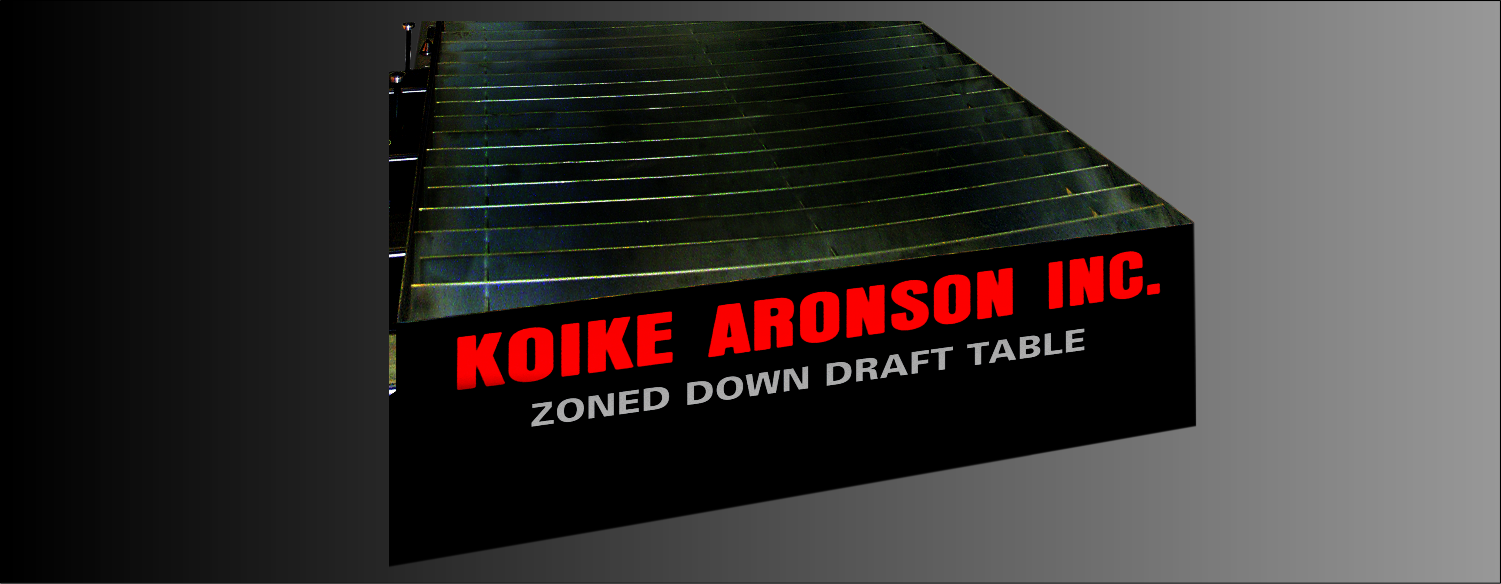

• Koike Zoned Downdraft Cutting Table: The Koike Downdraft table is as big, or as small, as most workpieces you’ve got. Its modular design lets you add space as you need it, with a maximum material thickness of 6 in. Operation is simple: there are no electronic components, and slat frames and slag pans remove easily for cleaning. Fume extraction is everything you need, thanks to multiple zones for optimal fume extraction. Downdraft tables are used primarily for plasma cutting and combined with fume extraction units that filter the air back to the factory. Downdraft tables provide the best option for high-quality cutting with high-density plasma systems.
• Koike Water Cutting Table: The Koike water cutting table is an economic solution to reducing smoke , sparks and dust into the environment. It can be used for both oxy-fuel and plasma cutting. While not the most optimized solution for high density plasma systems, it still provides good results in cut quality.Constructed out of 1/4″ thick steel the table offers a heavy duty design with re-enforced side walls for extra durability.The steel tank air bladder allows raising and lowering the water lever with air. The design of the table allows 6″ thick plate and under to be leveled to the table for more accurate cutting. 1/8″ thick slats are spaced 3″ apart and curved to help stop small parts from falling into table and prevent straight line cutting along a slat. This feature reduces slag along the bottom of parts and prolongs the life of the slats.Easy lift lugs allows you to lift the whole slat and pan assembly or each individual component of this assembly. As an example: it allows for the lifting of slats and the holder for easy access to collector pans.
• Fume Extraction Unit: For downdraft table
